Product Summary

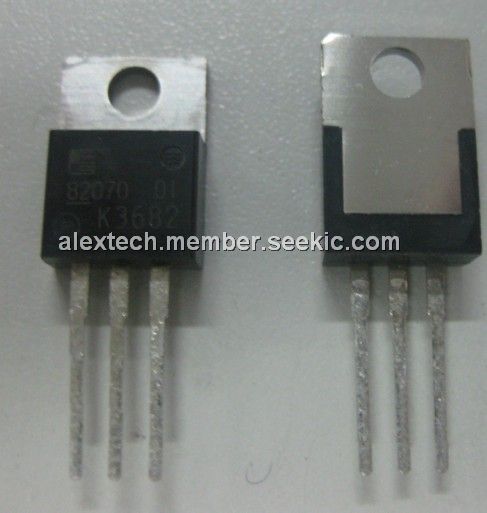

The 2SK3682-01 is a N-channel silicon power MOSFET. The applications of it are Switching regulators, DC-DC converters, UPS (Uninterruptible Power Supply).
Parametrics
2SK3682-01 absolute maximum ratings: (1)Drain-source voltage:500V; (2)Continuous drain current:±19A; (3)Pulsed drain current:±76A; (4)Gate-source voltage:±30V; (5)Non-Repetitive Maximum avalanche current:19A; (6)Non-Repetitive Maximum avalanche energy:245.3mJ; (7)Maximum Drain-Source dV/dt:20kV/s; (8)Peak diode recovery dV/dt:5kV/us; (9)Max. power dissipation:1.67W; (10)Operating temperature:+150℃; (11)storage temperature range:-55 to +150℃.
Features
2SK3682-01 features: (1)High speed switching; (2)Low on-resistance; (3)No secondary breadown; (4)Low driving power; (5)Avalanche-proof.

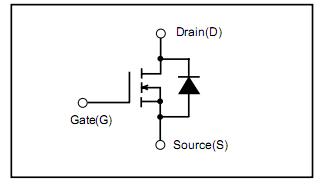

Diagrams
 |
