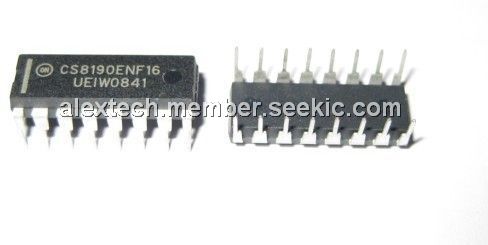

Product Summary
The CS8190ENF16 is a Precision Air-Core Tach/Speedo Driver with Return to Zero. It is specifically designed for use with air-core meter movements. The CS8190ENF16 provides all the functions necessary for an analog tachometer or speedometer. The CS8190ENF16 takes a speed sensor input and generates sine and cosine related output signals to differentially drive an air-core meter.
Parametrics
CS8190ENF16 absolute maximum ratings: (1)Supply Voltage, VCC: < 100 ms Pulse Transient:60V, Continuous:24 V; (2)Operating Temperature:–40 to +105℃; (3)Storage Temperature:–40 to +165℃; (4)Junction Temperature:–40 to +150℃; (5)ESD (Human Body Model):4.0 kV; (6)Lead Temperature Soldering: Wave Solder (through hole styles only):260℃ peak, Reflow: (SMD styles only):230℃ peak.
Features
CS8190ENF16 features: (1)Direct Sensor Input; (2)High Output Torque; (3)Low Pointer Flutter; (4)High Input Impedance; (5)Overvoltage Protection; (6)Return to Zero; (7)Internally Fused Leads in DIP–16 and SO–20L Packages.

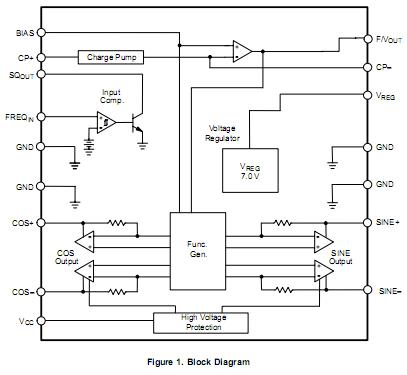

Diagrams
