Product Summary

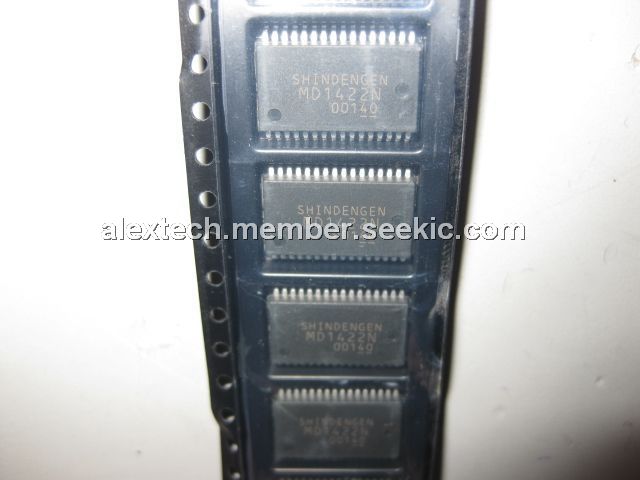

The MD1422N is a high-efficiency step down DC-DC converter power integrated circuit with main MOSFET switch and synchronous rectification MOSFET. The MD1422N can deliver high efficiency overa wide input voltage range. This device has output voltage digitally selectable from 2.5V to 12V. With the MD1422N you can construct acomplete DC-DC converter using only a few external components. Featuring an SSOP 32-pin surface mount package, the MD1422N allows you to incorporate a very small and thin power supply on yourcircuit board.
Parametrics
MD1422N absolute maximum ratings: (1)Input voltage: 42V; (2)Main MOS voltage: 42V; (3)Output current (ave): 3A; (4)Output current (peak): 4A; (5)Remote control voltage: 5.5V; (6)Storage temperature: -40 ~ 150℃; (7)Junction temperature: 150℃.
Features
MD1422N features: (1)High efficiency; (2)Wide input voltage load range; (3)Output voltage selectable function 2.5V to 12V; (4)Internal Switching power device; (5)Fixed 250kHz PWM frequency(Without external resistor and capacitor); (6)Overcurrent protection; (7)Thermal shutdown function; (8)Remote control ON/OFF.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MD1422N |
Shindengen |
DC/DC Switching Controllers Power IC |
Data Sheet |
Negotiable |
|
||||||
|
MD1422N-4072 |
Shindengen |
Switching Converters, Regulators & Controllers VDC= 8-40 A= 0-3 |
Data Sheet |
Negotiable |
|
||||||
|
MD1422N-7072 |
Shindengen |
Switching Converters, Regulators & Controllers VDC= 8-40 A= 0-3 |
Data Sheet |
|
|
||||||
