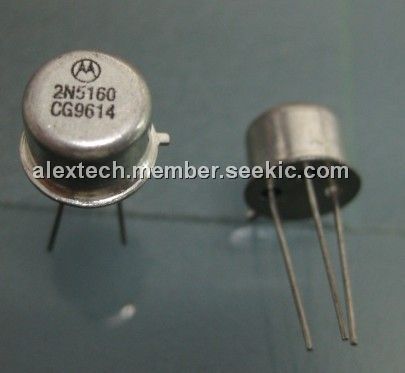

2N5160

PNP silicon RF power transistor, TO-39, high power gain, 2N5160, Motorola, Inc, -40Vdc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: 2N5160

Brand:: Motorola, Inc - Motorola | Pack: TO | D/C: 96+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-05

From Other Seller

Part Number:2N5160
US $1.00 - 1.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 2N5160 is a PNP silicon RF power transistor. It is designed for amplifier, frequency multiplier or oscillator applications in military and industrial equipment. The 2N5160 is suitable for use as class A, B, or C output driver, or pre-driver stages in VHF and UHF.

Parametrics

2N5160 absolute maximum ratings: (1)collector-emitter voltage:-40Vdc; (2)collector-base voltage:-60Vdc; (3)emitter-base voltage:-4.0Vdc; (4)collector current:-0.4Adc; (5)total device dissipation:5.0W; (6)operating and storage junction temperature range:-65 to +200℃.

Features

2N5160 features: (1)high power gain: GPE=8.0dB @ f=400MHz, 14.5dB(typ.)@ 175MHz- No emitter tuning; (2)power output-Pout=1.0W @ f=400MHz, Pout=1.5W @ f=175MHz; (3)resists burnout when load is shorted or opened; (4)designed for use in complementary circuits with 2N3866.
