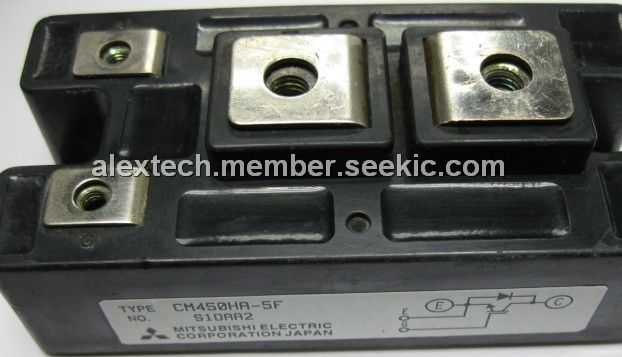

CM450HA-5F

High Frequency Operation, Low Drive Power, Low VCE(sat), Heat Sinking, IGBT module, 5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $90.00~102.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $90.00~102.00

PartNumber:: CM450HA-5F

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-05

From Other Seller

Part Number:CM450HA-5F
US $90.00 - 102.00
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
TLP250

US $0.90 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CM450HA-5F is an IGBT. It is designed for use in switching applications. Each module consists of one IGBT in a single configuration, with a reverse connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM450HA-5F are UPS, Forklift.

Parametrics

CM450HA-5F absolute maximum ratings: (1)Junction Temperature:-40 to 150 ℃; (2)Storage Temperature:-40 to 125 ℃; (3)Collector-Emitter Voltage (G-E Short):250 Volts; (4)Gate-Emitter Voltage (C-E Short):±20 Volts; (5)Collector Current (TC = 25℃):450 Amperes; (6)Peak Collector Current (Tj ≤ 150):900Amperes; (7)Emitter Current (TC = 25℃):450 Amperes; (8)Peak Emitter Current:900 Amperes; (9)Maximum Collector Dissipation (TC = 25℃):735 Watts; (10)Mounting Torque, M6 Main Terminal:1.96 to 2.94 N · m; (11)Mounting Torque, M6 Mounting:1.96 to 2.94 N · m; (12)Mounting Torque, M4 Terminal:0.98 to 1.47 N · m; (13)Weight:270 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.):2500 Vrms.

Features

CM450HA-5F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diodes; (4)High Frequency Operation; (5)Isolated Baseplate for Easy; (6)Heat Sinking.
