Product Summary

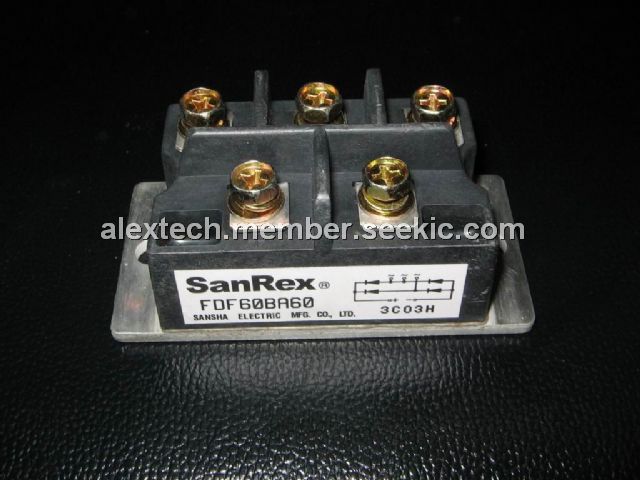

Power Diode Module FDF60BA60 is designed for single phase full wave rectification, which has four fast recovery diodes connected in a single phase bridge configuration. FDF60BA60 is suitable for high frequency application requiring low loss and high speed control.
Parametrics
FDF60BA60 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 600V; (2)VR (DC), D.C. Reverse Voltage: 480V; (3)Output current: 60A; (4)Surge Forward Current: 600A; (5)Operating Junction Temperature: -40 to +150 ℃; (6)Storage Temperature: -40 to +150 ℃; (7)Isolation Breakdown Voltage: 2500V.
Features
FDF60BA60 features: (1)High Speed trr≦100ns; (2)Output Current, DC60A; (3)Isolated Mounting base.

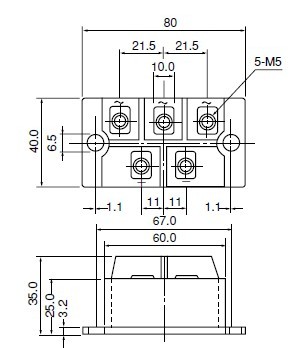

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FDF60BA60 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
FDF60BA50 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FDF60BA60 |
Other |
|
Data Sheet |
Negotiable |
|
||||
