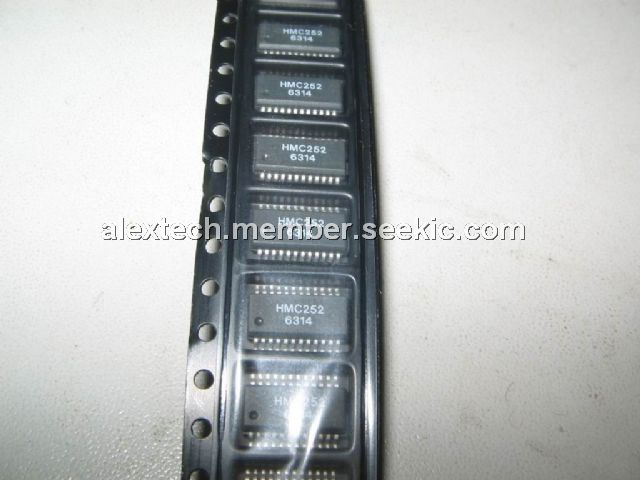

Product Summary
The HMC252QS24E is a low-cost non-refl ective SP6T switch in a 24-lead QSOP package featuring wideband operation from DC to 3.0 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:6 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC252QS24E SP6T replaces multiple confi gurations of SP4T and SPDT MMIC switches and logic drivers.
Parametrics
HMC252QS24E absolute maximum ratings: (1)Bias Voltage Range (Port Vdd): +7.0 Vdc; (2)Control Voltage Range (A, B, C): -0.5V to Vdd +1 Vdc; (3)Channel Temperature: 150 ℃; (4)Thermal Resistance (Insertion Loss Path): 240 ℃/W; (5)Thermal Resistance, (Terminated Path): 260 ℃/W; (6)Storage Temperature: -65 to +150 ℃; (7)Operating Temperature: -40 to +85 ℃; (8)Maximum Input Power: +20 dBm (0.05 - 0.5 GHz); Vdd = +5 Vdc: +26 dBm (0.5 - 3.0 GHz).
Features
HMC252QS24E features: (1)Low Insertion Loss (2 GHz): 0.9 dB; (2)Single Positive Supply: Vdd = +5V; (3)Integrated 3:6 TTL Decoder; (4)24 Lead QSOP Package.

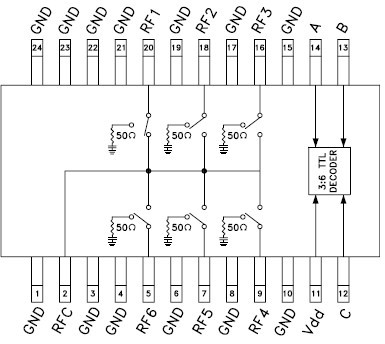

Diagrams
