Product Summary

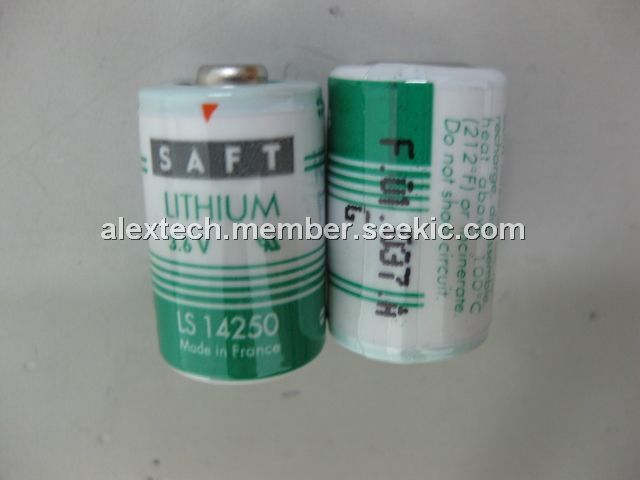

The LS-14250 is a Primary lithium battery. The main applications of the device are Utility metering, Automatic meter reading, Alarms and security devices, Memory back-up, Computer real-time clocks, Tracking systems, Automotive electronics and Professional electronics.

Parametrics

LS-14250 absolute maximum ratings: (1)Nominal capacity: 1.20 Ah; (2)Open circuit voltage (at + 20℃): 3.67 V; (3)Nominal voltage (at 0.1 mA + 20℃): 3.6 V; (4)Maximum recommended continuous current: 35 mA; (5)Storage (recommended): + 30℃max; (6)Operating temperature range: - 60℃/+ 85℃.

Features

LS-14250 features: (1)Stainless steel container and end caps (low magnetic signature); (2)Hermetic glass-to-metal sealing; (3)Non-flammable electrolyte; (4)Compliant with IEC 86-4 safety standard and IEC 60079-11 intrinsic safety standard; (5)Underwriters Laboratories (UL) Component Recognition (File Number MH 12609); (6)Non-restricted for transport.

Diagrams

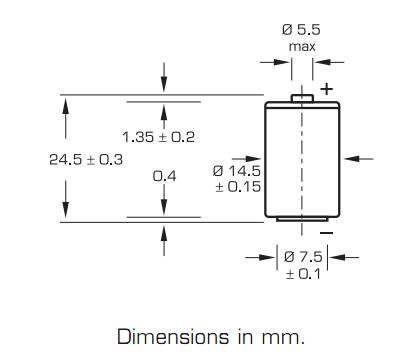

LS-14250 dimensions
