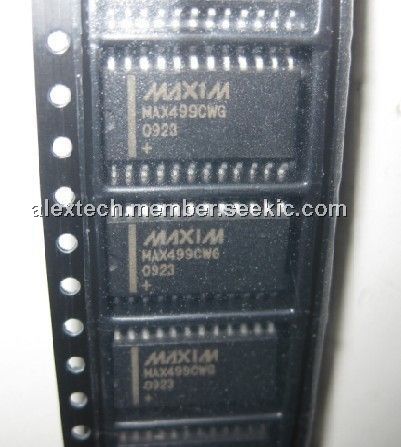

Product Summary
The MAX499CWG is a high-speed, quad/triple, sin-gle-pole/double-throw video switch with on-boardclosed-loop buffer amplifier. The buffer amplifier fea-ture +6dB gain (AVCL = 2V/V), 250MHz -3dB band-width, 70MHz 0.1dB gain flatness, and 1250V/μs slewrate. Fast switching time (3ns) and fast settling time(12ns for a 4V step) make the MAX499CWG excellent choice for a wide variety of video applications. The low differential gain/phase errors (0.03%/0.06°) and widebandwidth make them ideal for both composite-videoand RGB applications. The amplifiers are capable ofdelivering ±2.5V into back-terminated 50 Ωor 75Ω cables, and they deliver ±2V to a 75Ω load, allowing multiple cables to be driven from a single output. Applications include Video Switching and Routing, Broadcast-Quality Composite-Video Multiplexing, Workstations, Video Editing, Broadcast and High-Definition TV Systems, Multimedia Products and Medical Imaging.
Parametrics
MAX499CWG absolute maximum ratings: (1)Supply Voltage (VCC to VEE): +12V; (2)Voltage on IN to GND: (VEE - 0.3V) to (VCC + 0.3V); (3)Voltage on Digital Inputs(LE,EN, A0, CS): -0.3V to (VCC + 0.3V); (4)Voltage on OUT (disabled): ±4V; (5)Operating Temperature Range: 0 to +70℃; (6)Storage Temperature Range: -65 to +150℃; (7)Lead Temperature (soldering, 10sec): 300℃.
Features
MAX499CWG features: (1)High Speed; (2)70MHz 0.1dB Gain Flatness; (3)1250V/μs Slew Rate; (4)12ns to 0.1% Settling Time; (5)0.03°/0.06% Differential Phase/Gain Error; (6)2pF Input Capacitance; (7)3ns Channel-Switching Time; (8)120mVp-p Channel-Switching Transient; (9)Three-State Output Allows Large Switch Arrays.

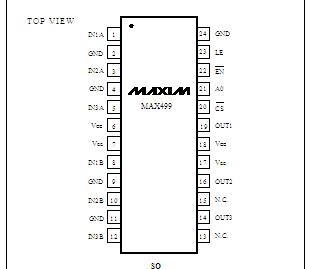

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX499CWG |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX499CWG+ |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX499CWG+T |
Maxim Integrated Products |
Video Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX499CWG-T |
Maxim Integrated Products |
Video Switch ICs |
Data Sheet |
Negotiable |
|
||||
