Product Summary

The MB90F394H is a 16-bit Proprietary Microcontroller. It is especially designed for automotive and industrial applications. The main features of the MB90F394H are up to five on board CAN Interfaces, which conform to V2.0 Part A and Part B, while supporting a very flexible message buffer scheme and so offering more functions than a normal full CAN approach. The MB90F394H features 6 Stepper Motor Controllers with slew rate controlled high current outputs.

Parametrics

MB90F394H absolute maximum ratings: (1)power supply voltage:VSS-0.3V to VSS+0.6V; (2)operating temperature:-40 to +85℃; (3)Input voltage:VSS-0.3V to VSS+0.6V; (4)Output voltage:VSS-0.3V to VSS+0.6V; (5)Maximum Clamp Current: -4.0mA to +4.0mA; (6)Total Maximum Clamp Current:40mA; (7)“L” level maximum output current:15mA; (8)“L” level average output current: 4mA; (9)“L” level maximum output current:40mA; (10)“L” level average output current:30mA; (11)“L” level maximum overall output current:100mA; (12)“L” level maximum overall output current:330mA; (13)“L” level average overall output current:50mA; (14)“L” level average overall output current:250mA; (15)“H” level maximum output current:-15mA; (16)“H” level average output current:-4mA; (17)“H” level maximum output current:-40mA; (18)“H” level average output current:-30mA; (19)“H” level maximum overall output current:-100mA; (20)“H” level maximum overall output current:-330mA; (21)“H” level average overall output current:-50mA; (22)“H” level average overall output current:-250mA; (23)Power consumption:800mW; (24)Storage temperature:-55 to +150℃.

Features

MB90F394H features: (1)16-bit core CPU; 4 MHz external clock (24 MHz internal, 42 ns instruction execution time) ; (2)New 0.35 μm CMOS Process Technology ; (3)Internal voltage regulator supports 3 V MCU core, offering low EMI and low power consumption figures; (4)Up to five FULL-CAN interfaces; conforming to Version 2.0 Part A and Part B, flexible message buffering(mailbox and FIFO buffering can be mixed) ; (5)Powerful interrupt functions (8 progr. priority levels; 8 external interrupts) ; (6)EI2OS - Automatic transfer function indep.of CPU; 16 channels of intelligent I/O Services; (7)18-bit Time-base counter; (8)Watchdog Timer; (9)2 full duplex UARTs; support 10.4 Kbps (USA standard ) ; (10)Up to 2 full duplex UARTs (LIN/SCI) ; (11)Serial I/O : 1 channel for synchronous data transfer ; (12)Optional I2C with 400 Kbps; (13)A/D Converter : 15 channels analog inputs (Resolution 10 bits or 8 bits) ; (14)16-bit reload timer × 2 channels; (15)ICU (Input capture) 16-bit × 6 channels (2 input pins are shared with OCU outputs) ; (16)OCU (Output capture) 16-bit × 8 channels (2 output pins are shared with ICU input pins) ; (17)16-bit free running timer × 2 channels (FRT0 : ICU 0/1, OCU 0/1/2/3, FRT1 : ICU 2/3/4/5, OCU 4/5/6/7) ; (18)8/16-bit Programmable Pulse Generator 6 channels × 16-bit/12 channels × 8-bit; (19)Stepping Motor Controller 6 channels with slew rate controlled high current outputs.

Diagrams

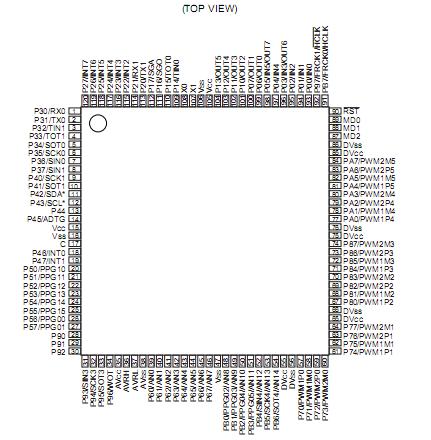

MB90F394H pin configuration
