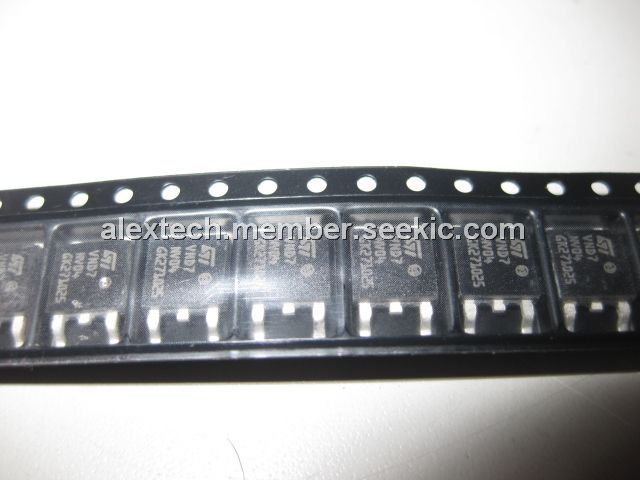

Product Summary

The VND7NV04 is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 50 kHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.

Parametrics

VND7NV04 absolute maximum ratings: (1)Input current: ±20mA; (2)Minimum input series impedance: 150Ω; (3)Reverse DC output current: -10.5A; (4)Electrostatic discharge: 4000V; (5)Total dissipation: 60W; (6)Maximum switching energy: 37mJ; (7)Storage temperature: -55 to 150℃.

Features

VND7NV04 features: (1)current limitation; (2)Thermal shutdown; (3)Short circuit protection; (4)Integrated clamp; (5)Low current drawn from input pin; (6)Diagnostic feedback through input pin; (7)ESD protection; (8)Direct access to the gate of the Power MOSFET (analog driving).

Diagrams

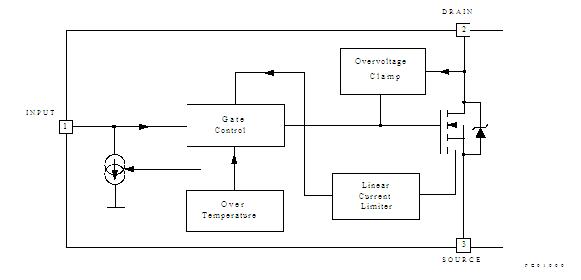

VND7NV04 Block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VND7NV04
VND7NV04
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 42V 6A OmniFET
Data Sheet
0-2270: $0.44
2270-5000: $0.42
5000-10000: $0.41
VND7NV04-1
VND7NV04-1
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 42V 6A OmniFET
Data Sheet
0-2230: $0.42
2230-5000: $0.41
5000-10000: $0.39
VND7NV04TR-E
VND7NV04TR-E
STMicroelectronics
MOSFET N-Ch 42V 6A OmniFET
Data Sheet
0-1: $1.02
1-10: $0.92
10-100: $0.74
100-250: $0.66
VND7NV04-1-E
VND7NV04-1-E
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 42V 6A OmniFET
Data Sheet
0-2270: $0.44
2270-5000: $0.42
5000-10000: $0.41
VND7NV04-E
VND7NV04-E
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 42V 6A OmniFET
Data Sheet
0-2230: $0.42
2230-5000: $0.41
5000-10000: $0.39
VND7NV0413TR
VND7NV0413TR
STMicroelectronics
Power Switch ICs - Power Distribution N-Ch 42V 6A OmniFET
Data Sheet
0-1730: $0.48
1730-2000: $0.45
2000-2500: $0.45
2500-5000: $0.43
