Product Summary

The 1N5364B is a complete series of 5 Watt Zener Diode with tight limits and better operatingcharacteristics that reflect the superior capabilities of silicon-oxide-passivated junctions. The 1N5364B is in an axial-lead, transfer-molded plastic package that offers protection in all com-mon environmental conditions.

Parametrics

1N5364B absolute maximum ratings: (1)DC Power Dissipation: 5W; (2)Operating and Storage Junction Temperature Range: –65 to +200℃.

Features

1N5364B features: (1)Up to 180 Watt; (2)Maximum Limits Guaranteed on Seven Electrical Parameters; (3)Void-free, transfer-molded, thermosetting plastic; (4)All external surfaces are corrosion resistant and leads are readily solderable.

Diagrams

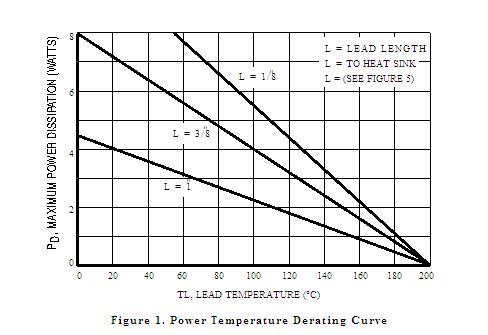

1N5364B Power Temperature Derating Curve

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1N5364B-TP
1N5364B-TP
Micro Commercial Components (MCC)
Zener Diodes 5.0W 33V
Data Sheet
0-1: $0.24
1-25: $0.20
25-100: $0.14
100-500: $0.11
1N5364B-T
1N5364B-T
Micro Commercial Components (MCC)
Zener Diodes 5.0W 33V
Data Sheet
Negotiable
1N5364BRLG
1N5364BRLG
ON Semiconductor
Zener Diodes 33V 5W
Data Sheet
0-1: $0.23
1-25: $0.18
25-100: $0.14
100-500: $0.11
1N5364BRL
1N5364BRL
ON Semiconductor
Zener Diodes 33V 5W
Data Sheet
Negotiable
1N5364BG
1N5364BG
ON Semiconductor
Zener Diodes 33V 5W
Data Sheet
0-1: $0.22
1-25: $0.16
25-100: $0.13
100-500: $0.11
1N5364B
1N5364B
ON Semiconductor
Zener Diodes 33V 5W
Data Sheet
Negotiable
