Product Summary

The BCM5325EKQMG is a six-port managed 10/100 robo switch.

Features

BCM5325EKQMG features: (1)Port-based and 802.1Q-based VLAN with 16 entries; (2)802.1d Spanning Tree; (3)Supports 802.1x EAPOL higher layer protocol; (4)Programmable storm control; (5)1K MAC addresses with automatic learning and aging; (6)Programmable per port flow control and back-pressure; (7)MII or reversed MII; (8)MDC/MDIO and SPI interfaces; (9)WAN port and protected port support; (10)Port mirroring and IGMP layer 3 snooping; (11)Internal oscillator simplifies design and reduces cost; (12)3.3V and 2.5V, power consumption is less than 1.0W; (13)BCM5325E/BCM5325U pin-to-pin compatible with BCM5325M/BCM5325 respectively; (14)128-pin MQFP package.

Diagrams

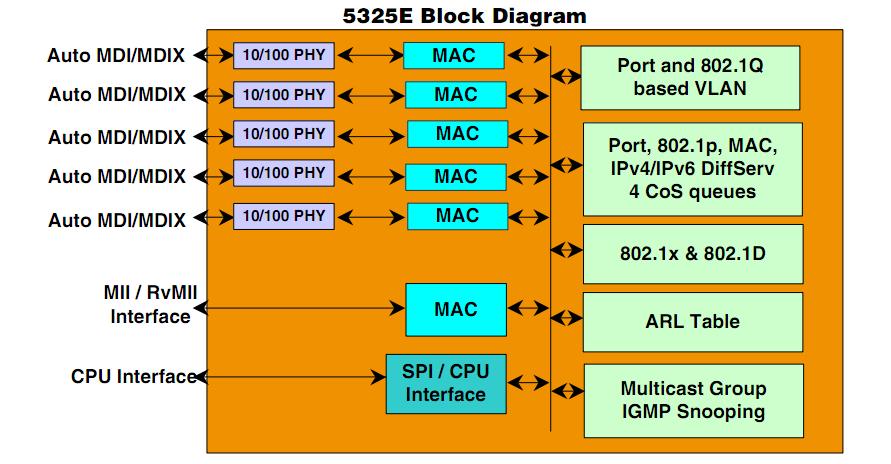

BCM5325EKQMG block diagram
