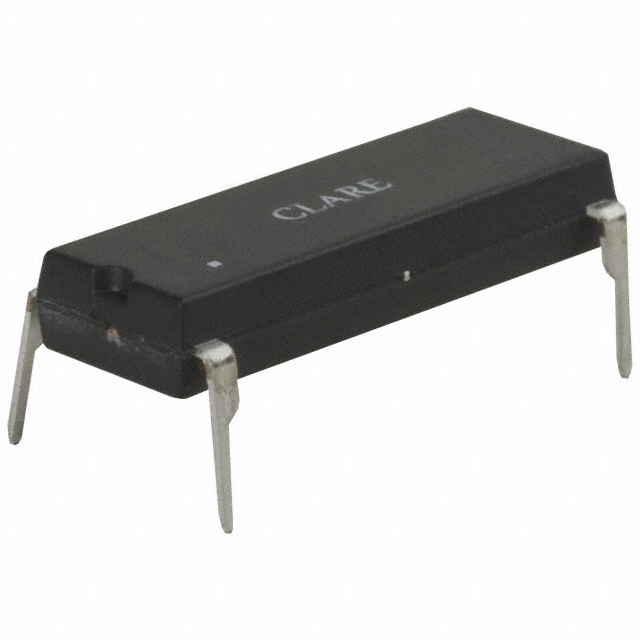

CPC1965G

AC Solid State Switch, DIP4, 150 mW, 100 mA, 5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.12

PartNumber:: CPC1965G

Brand:: Clare, Inc. - CLARE | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-15

From Other Seller

Part Number:CPC1965G
US $2.00 - 3.12
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CPC1965G is an AC Solid State Switch using patented waveguide coupling with dual power SCR outputs to produce an alternative to optocoupler and Triac circuits. The CPC1965G switches are robust enough to provide a blocking voltage of up to 600V. In addition, tightly controlled zero cross circuitry ensures switching of AC loads without the generation of transients. The input and output circuits are optically coupled to provide 3750V of isolation and noise immunity between control and load circuits. As a result the CPC1965G is well suited for industrial environments where electromagnetic interference would disrupt the operation of electromechanical relays. The applications of the CPC1965G include Programmable Control, Process Control, Power Control Panels, Remote Switching, Gas Pump Electronics, Contractors, Large Relays, Solenoids, Motors and Heaters.

Parametrics

CPC1965G absolute maximum ratings: (1)Input Power Dissipation:150 mW; (2)Input Control Current: 100 mA; (3)Peak (10ms): 1 A; (4)Reverse Input Voltage: 5 V; (5)Total Package Dissipation, PD: 1600 mW; (6)Isolation Voltage, Input to Output: 3750VRMS; (7)Operational Temperature: -40 to +85℃; (8)Storage Temperature: -40 to +125℃; (9)Soldering Temperature (10 Seconds Max.): +260℃.

Features

CPC1965G features: (1)Load Current up to 1A; (2)Blocking Voltage to 600V; (3)5mA Sensitivity; (4)Zero-Crossing Detection; (5)DC Control, AC Output; (6)Optically Isolated ; (7)TTL and CMOS Compatible; (8)Low EMI and RFI Generation; (9)High Noise Immunity; (10)VDE compatible; (11)Machine Insertable, Wave Solderable.
