Product Summary

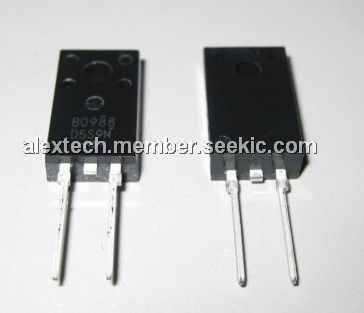

The D5S9M is a 90V Schottky Rectifier. The applications of it are Switching power supply, DC/DC converter, Home Appliances, Office Equipment, Telecommunication.
Parametrics
D5S9M absolute maximum ratings: (1)Storage Temperature:-40 to 150℃; (2)Operating Junction Temperature:150℃; (3)Maximum Reverse Voltage:90V; (4)Repetitive Peak Surge Reverse Voltage:100V; (5)Average Rectified Forward Current:5A; (6)Peak Surge Forward Current:100A; (7)Repetitive Peak Surge Reverse Power:330W; (8)Dielectric Strength:1.5kV; (9)Mounting Torque:0.5N.m.
Features
D5S9M features: (1)Tj:150℃; (2)PRRSM avalanche guaranteed; (3)Fully Isolated Molding.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 D5S9M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
D5S9M-4000 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=90 IFSM=100 |
Data Sheet |
Negotiable |
|
||||
|
D5S9M-4012 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=90 IFSM=100 |
Data Sheet |
Negotiable |
|
||||
|
D5S9M-4100 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=90 IFSM=100 |
Data Sheet |
Negotiable |
|
||||
|
D5S9M-4112 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=90 IFSM=100 |
Data Sheet |
Negotiable |
|
||||
|
D5S9M-7000 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=90 IFSM=100 |
Data Sheet |
Negotiable |
|
||||
|
D5S9M-7012 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=90 IFSM=100 |
Data Sheet |
Negotiable |
|
||||
|
D5S9M-7100 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=90 IFSM=100 |
Data Sheet |
Negotiable |
|
||||
