Product Summary

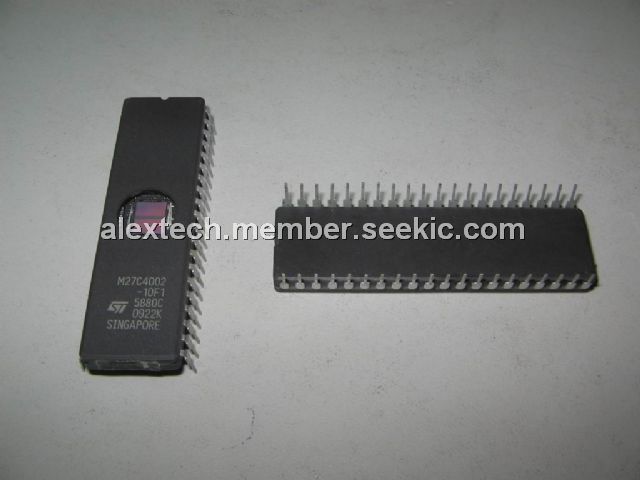

The M27C4002-10F1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The M27C4002-10F1 is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 words of 16 bits. The FDIP40W (window ceramic frit-seal package) and the JLCC44W (J-lead chip carrier packages) have transparent lids which allow the user to expose the M27C4002-10F1 to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
Parametrics
M27C4002-10F1 absolute maximum ratings: (1)TA, Ambient Operating Temperature:–40 to 125℃; (2)TBIAS, Temperature Under Bias: –50 to 125℃; (3)TSTG, Storage Temperature: –65 to 150℃; (4)VIO, Input or Output Voltage (except A9): –2 to 7 V; (5)VCC, Supply Voltage: –2 to 7 V; (6)VA9, A9 Voltage :–2 to 13.5 V; (7)VPP, Program Supply Voltage: –2 to 14 V.
Features
M27C4002-10F1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 45ns; (3)low power consumption: Active Current 70mA at 10MHz; Standby Current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 100μs/word; (6)electronic signature: Manufacturer Code: 20h; Device Code: 44h.

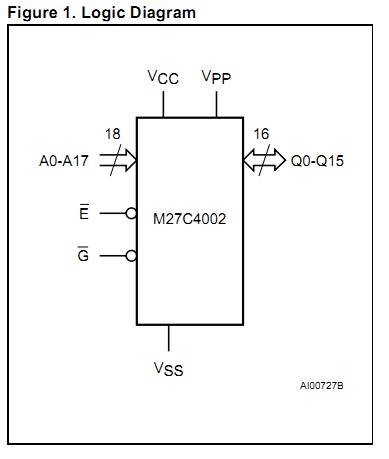

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C4002-10F1 |
STMicroelectronics |
EPROM 4M (256Kx16) 100ns |
Data Sheet |
Negotiable |
|
||||
