Product Summary

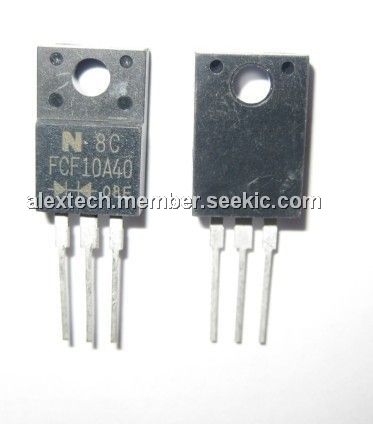

The FCF10A40 is a fast recovery diode.

Parametrics

FCF10A40 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage:400V; (2)Non-repetitive Peak Reverse Voltage:440V; (3)Average Rectified Output Current:10A; (4)RMS Forward Current:11.1A; (5)Surge Forward Current:80A; (6)Operating JunctionTemperature Range:-40 to +150℃; (7)Storage Temperature Range:-40 to +150℃; (8)Mounting torque:0.5N.m.

Features

FCF10A40 features: (1)Fully Molded Isolation; (2)Dual Diodes – Cathode Common; (3)Ultra – Fast Recovery; (4)Low Forward Voltage Drop; (5)High Surge Capability; (6)200 Volts thru 600 Volts Types Available.

Diagrams

FCF10A40 circuit diagram
