Product Summary
The LH0022CH is a FET input operational amplifier with veryhigh input impedance and low input currents with no compromise in noise common mode rejection ratio open loopgain or slew rate. The LH0022CH is internally compensatedand is free of latch-up. The LH0022CH is specified for operation over the b55℃ to a125℃ military temperature range. The LH0022CH is specified for operation over the b25℃ to a85℃ temperature range.
Parametrics
LH0022CH absolute maximum ratings: (1)Supply Voltage: 22V; (2)Power Dissipation (see Graph): 500 mW; (3)Input Voltage (Note 1): 15V; (4)Differential Input Voltage (Note 2): 30V; (5)Voltage Between Offset Null and Vb: 5V; (6)Storage Temperature Range: 65℃ to a150℃; (7)Lead Temperature (Soldering 10 sec): 300℃.
Features
LH0022CH features: (1)High open loop gain 100 dB typ; (2)Internal compensation; (3)Pin compatible with standard IC op amps(TO-99 package).

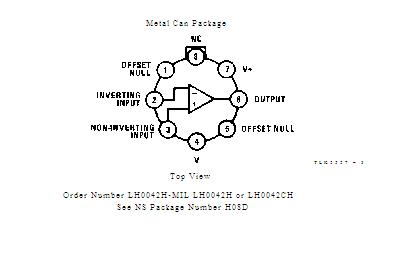

Diagrams
 |
