Product Summary

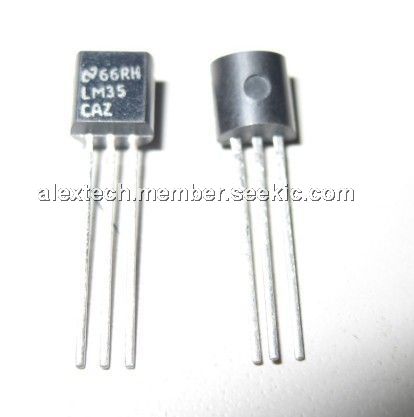

The LM35CAZ is precision integrated-circuit temperature sensor, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. The LM35CAZ thus has an advantage over linear temperature sensors calibrated in Kelvin, as the user is not required to subtract a large constant voltage from its output to obtain convenient Centigrade scaling. Low cost is assured by trimming and calibration at the wafer level. The LM35CAZ low output impedance, linear output, and precise inherent calibration make interfacing to readout or control circuitry especially easy.

Parametrics

LM35CAZ absolute maximum ratings: (1)Supply Voltage: +35V to -0.2V; (2)Output Voltage: +6V to -1.0V; (3)Output Current: 10 mA; (4)ESD Susceptibility: 2500V; (5)Storage Temp.TO-46 Package: -60℃ to +180℃; (6)TO-92 Package: -60℃ to +150℃; (7)SO-8 Package: -65℃ to +150℃; (8)TO-220 Package: -65℃ to +150℃.

Features

LM35CAZ features: (1)Calibrated directly in Celsius (Centigrade); (2)Linear + 10.0 mV/℃ scale factor; (3)0.5℃ accuracy guaranteeable (at +25℃); (4)Rated for full -55 to +150℃ range; (5)Suitable for remote applications; (6)Low cost due to wafer-level trimming; (7)Operates from 4 to 30 volts; (8)Less than 60 μA current drain; (9)Low self-heating, 0.08℃ in still air; (10)Low impedance output, 0.1 Ohm for 1 mA load.

Diagrams

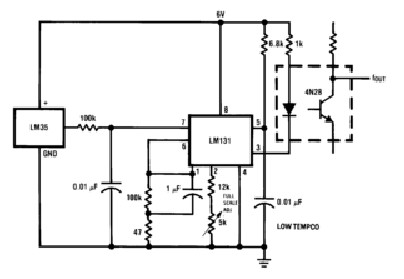

LM35CAZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM35CAZ
LM35CAZ
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-1800: $1.67
1800-3600: $1.59
LM35CAZ/LFT4
LM35CAZ/LFT4
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-2000: $1.67
2000-4000: $1.59
LM35CAZ/NOPB
LM35CAZ/NOPB
National Semiconductor (TI)
Board Mount Temperature Sensors PREC CENTIGRADE TEMP SENSOR
Data Sheet
0-1: $3.36
1-25: $2.70
25-100: $2.46
100-250: $2.22
