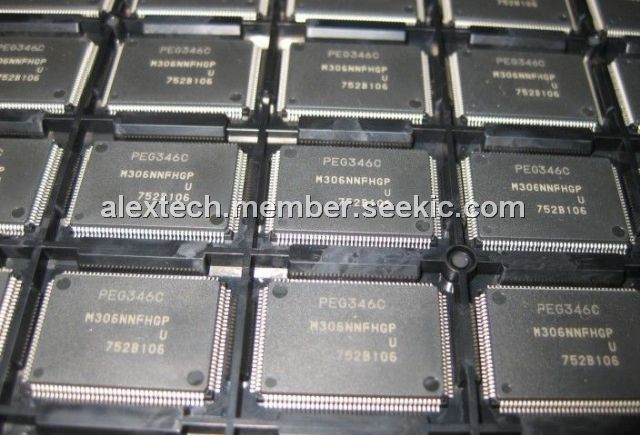

M306NNFHGP

Renesas MCU, QFP128, high-performance silicon gate CMOS process, -0.3V to 6.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~5.00

PartNumber:: M306NNFHGP

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-05

From Other Seller

Part Number:M306NNFHGP
US $3.00 - 5.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

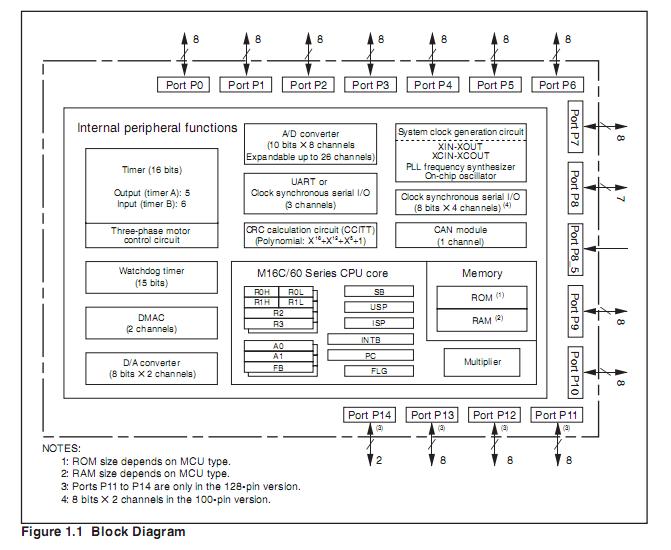

The M306NNFHGP is a MCU. It is builts using the high-performance silicon gate CMOS process using the M16C/60 Series CPU core and are packaged in 100-pin and 128-pin plastic molded LQFP. The M306NNFHGP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1 Mbyte of address space, it is capable of executing instructions at high speed. The applications of the M306NNFHGP are Car audio and industrial control systems, other.

Parametrics

M306NNFHGP absolute maximum ratings: (1)Supply voltage (VCC1 = VCC2):-0.3V to 6.5V; (2)Analog supply voltage:-0.3V to 6.5V; (3)Input voltage:-0.3V to VCC+0.3V; (4)Output voltage:-0.3V to VCC+0.3V; (5)power dissipation:700mW; (6)operating ambient temperature:-40 to 85℃ or 0 to 60℃; (7)storage temperature:-65 to 150℃.

Features

M306NNFHGP features: (1)Programming and erasure voltage:3.3 ± 0.3 V or 5.0 ± 0.5 V; (2)Programming and erasure endurance:100 times; (3)I/O withstand voltage:5.0V; (4)Output current:5mA; (5)Operating Ambient Temperature:-40 to 85℃; (6)Device Configuration:CMOS high-performance silicon gate; (7)Package:100-pin molded-plastic LQFP.
