Product Summary

The MAX696CWE is a surpervisory circuit. It reduces the complexity and mumber of components required for power supply monitoring and battery control functions in microprocessor systems. The MAX696CWE is supplied in 16-pin packages. The device has battery backup switching for CMOS RAM, CMOS microprocessor, or other low power logic. The applications of the MAX696CWE include computers, controllers, intelligent instruments, automotive systems, and circuit μP power monitoring.

Parametrics

MAX696CWE absolute maximum ratings: (1)terminal voltage, VCC: -0.3 to 6.0V; VBATT: -0.3 to 6.0V; all other inputs: -0.3 to VOUT+0.5V; (2)input current, VCC: 200mA; VBATT: 50mA; GND: 20mA; (3)output current, VOUT: short circuit protected; all other outputs: 20mA; (4)rate-of-rise, VBATT, VCC: 100V/μs; (5)operating temeprature range: 0 to 70℃; (6)power dissipation: 600mW; (7)storage temepature range: -65 to 160℃; (8)lead tempeature: 300℃.

Features

MAX696CWE features: (1)adjustable low line monitor and power down reset; (2)power OK/Reset time delay; (3)watchdog timer-100ms, 1.6sec, or adjustable; (4)minimum component count; (5)1μA standby current; (6)battery backup power siwtching; (7)separate monitor for power fail or low battery warming.

Diagrams

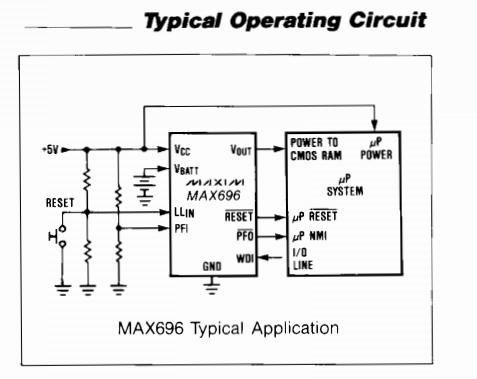

MAX696CWE typical operating circuit
