Product Summary
The PH50S280-15 is a DC-DC converter.
Parametrics
PH50S280-15 general specifications: (1)Output Voltage Adj. Range:13.5V to 16.5V; (2)Line Regulation:0.4% or 20mV (whichever is greater) over entire input range with constant load; (3)Load Regulation:0.8% or 40mV (whichever is greater) from no load to full load with constant input line; (4)Ripple and Noise:150mV; (5)Series Operation:Possible - Refer to installation manual; (6)Over Voltage Protection:125% to 145%; (7)Overload Protection:Approximately 105 to 140%, automatic recovery; (8)Remote On/Off:Low = ON, Open = OFF; (9)Parallel operation:Requires external circuitry; (10)Inverter Good signal:Signal available for status of inverter; (11)Thermal Protection:Internal sensing, self resetting.
Features
PH50S280-15 features: (1)High Density; (2)Wide Range Input; (3)Output adjustment Capability; (4)Remote On/Off; (5)Fixed Switching Frequency; (6)International Safety Approvals.

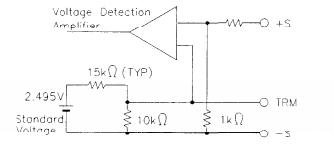

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

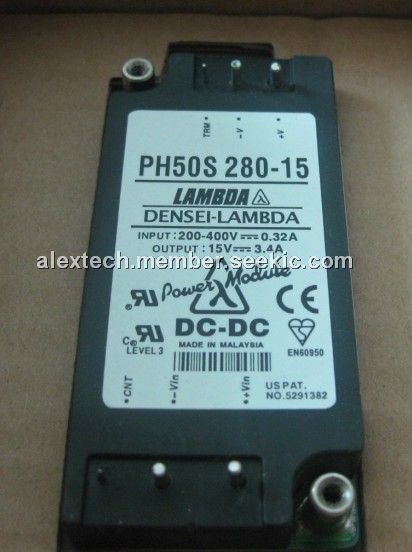

![]() PH50S280-15 |
![]() TDK-Lambda |
![]() DC/DC Converters 50W 15V 3.4A |
![]() Data Sheet |
![]()
|
|
||||||||||||
