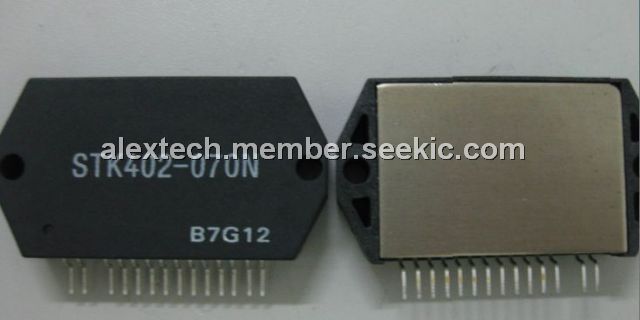

Product Summary

The STK402-070N is an audio power amplifier hybrid IC that consists of optimally-designed discrete component power amplifier circuits that have been miniaturized using unique insulated metal substrate technology (IMST). SANYO has adopted a new low thermal resistance substrate in these products toreduce the package size by about 60% as compared to the earlier SANYO STK407-000 series.

Parametrics

STK402-070N absolute maximum ratings: (1)Maximum supply voltage (No signal): ±34V; (2)Maximum supply voltage: ±32V; (3)Thermal resistance: 3.6℃/W; (4)Junction temperature: 150℃; (5)Operating IC substrate temperature: 125℃; (6)Storage temperature: –30 to +125℃; (7)Allowable load shorted time: 0.5s.

Features

STK402-070N features: (1)Output load impedance: RL = 6Ω; (2)Allowable load shorted time: 0.3 seconds; (3)Supports the use of standby, muting, and load shorting protection circuits.

Diagrams

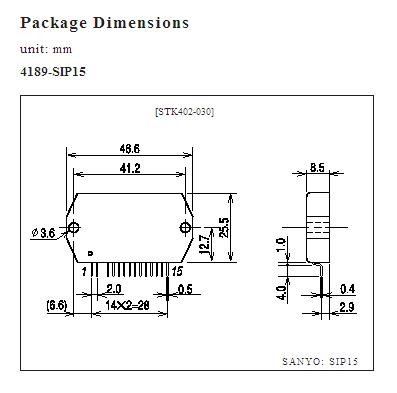

STK402-070N Package Dimensions
