Product Summary

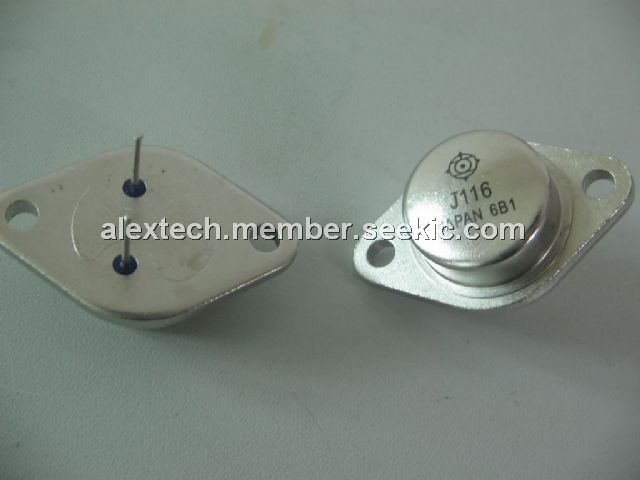

The 2SJ116 is a P-channel MOSFET.
Parametrics
2SJ116 absolute maximum ratings: (1)drain-source voltage: -400V; (2)gate-source voltage: ±20V; (3)drain current: -8A; (4)drain peak current: -15A; (5)channel dissipation: 125W; (6)channel temperature: 150℃; (7)storage temperature: -55 to 150℃.
Features
2SJ116 features: (1)low on-risistance; (2)high speed switching; (3)high cutoff frequency; (4)no secondary breakdown; (5)suitable for switching regulator.
Diagrams
 |
