Product Summary

The BTS650PE3180A is a 62V Smart Highside High Current Power Switch. The applications of it are Power switch with current sense diagnostic feedback for 12 V and 24 V DC grounded loads, Most suitable for loads with high inrush current like lamps and motors; all types of resistive and inductive loads, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS650PE3180A absolute maximum ratings: (1)Supply voltage:42 V; (2)Supply voltage for short circuit protection:34 V; (3)Load current:self-limited; (4)Load dump protection:75 V; (5)Operating temperature range:-40 to +150℃; (6)Storage temperature range:-55 to +150℃; (7)Power dissipation (DC):170W; (8)Inductive load switch-off energy dissipation:1.5J; (9)Electrostatic discharge capability (ESD):4kV; (10)Current through input pin (DC):+15mA to -250mA; (11)Current through current sense status pin (DC):+15mA to -250mA.

Features

BTS650PE3180A features: (1)Overload protection ; (2)Current limitation ; (3)Short circuit protection ; (4)Over temperature protection ; (5)Over voltage protection (including load dump) ; (6)Clamp of negative voltage at output ; (7)Fast deenergizing of inductive loads ; (8)Low ohmic inverse current operation ; (9)Reversave (Reverse battery protection) ; (10)Diagnostic feedback with load current sense ; (11)Open load detection via current sense ; (12)Loss of Vbb protection ; (13)Electrostatic discharge (ESD) protection.

Diagrams

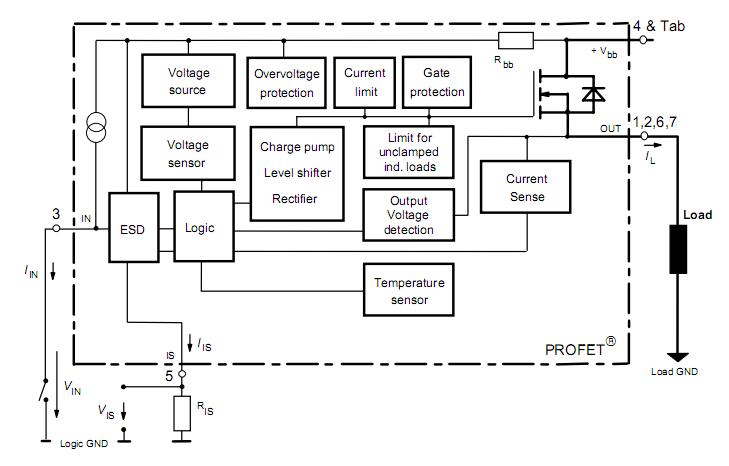

BTS650PE3180A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTS650PE3180A
BTS650PE3180A

Infineon Technologies

Power Switch ICs - POE / LAN Smart High Side High Current PROFET

Data Sheet

Negotiable
