Product Summary

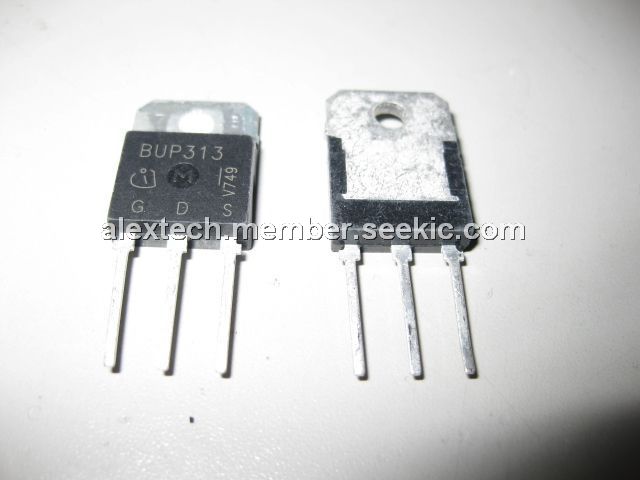

The BUP313 is a High switching speed transistor.
Parametrics
BUP313 absolute maximum ratings: (1)Collector-emitter voltage: 1200v; (2)Collector-gate voltage: 1200v; (3)Gate-emitter voltage: ± 20v; (4)DC collector current: 32A/20A; (5)Power dissipation: 200W; (6)Chip or operating temperature: -55 to 150℃; (7)Storage temperature: -55 to 150℃.
Features
BUP313 features: (1)Low forward voltage drop; (2)High switching speed; (3)Low tail current; (4)Latch-up free; (5)Avalanche rated.

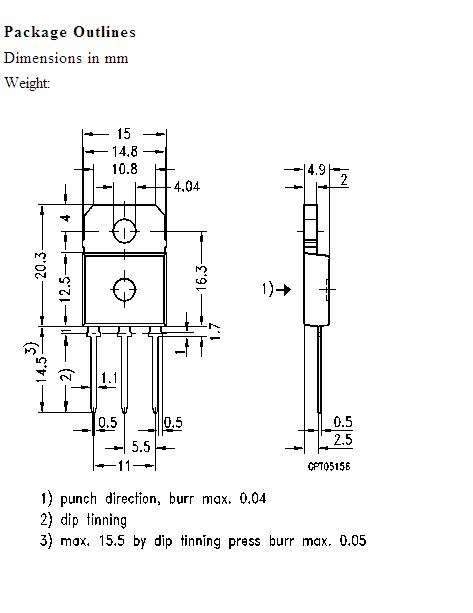

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
BUP313 |
Infineon Technologies |
IGBT Transistors LOW LOSS IGBT 1200V 15A |
Data Sheet |
Negotiable |
|
|||||
BUP313D |
Infineon Technologies |
IGBT Transistors LOW LOSS DuoPack 1200V 15A |
Data Sheet |
Negotiable |
|
