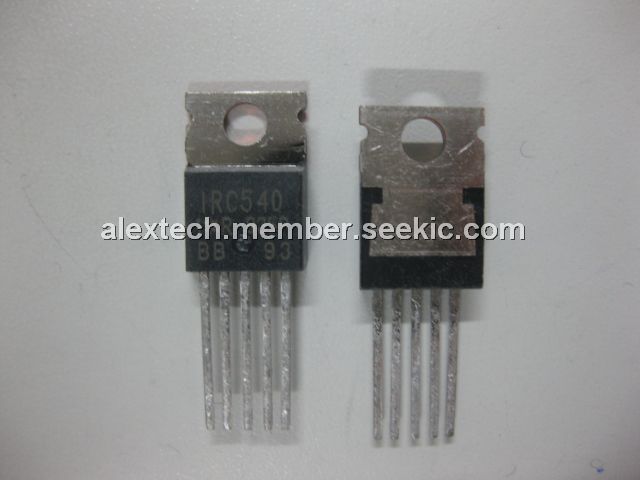

Product Summary
The IRC540 is a kind of Power MOSFET(Vdss=100V, Rds(on)=0.077ohm, Id=28A). It provides an accurate fraction of the drain current through the additional two leads to be used for control or protection of the device.
Parametrics
IRC540 abosute maximum ratings: (1)Continuous Drain current: 20~28A; (2)Pulsed Drain current: 110W; (3)Power Disaipation: 150W; (4)Linear Derating Factor: 1.0W/℃; (5)Gate-to-Source Voltage: ±20V; (6)Repective avalanche energy: 15mJ; (7)Operating junction and storage temperature range: -55 to +175℃.
Features
IRC540 features: (1)Dynamic dv/dt rating; (2)Repetive avalanche rated; (3)Current sense; (4)175℃ operating temperature; (5)Fast swicthing; (6)Ease of paralleling; (7)Simple drive requirements.

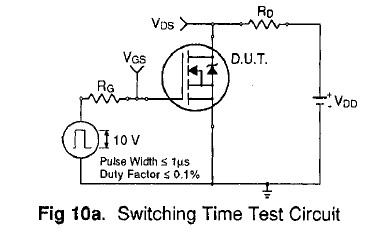

Diagrams
