Product Summary

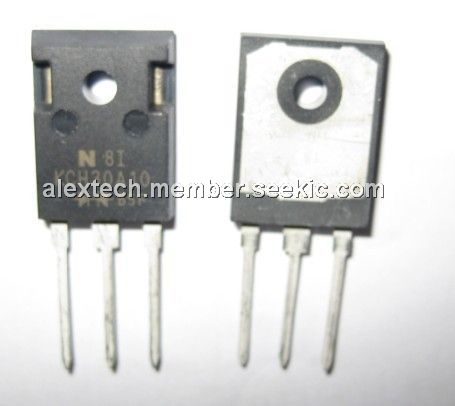

The KCH30A10 is a 100V Schottky Barrier Diode.
Parametrics
KCH30A10 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage:100V; (2)Average Rectified Output Current:30A; (3)RMS Forward Current:33.3A; (4)Surge Forward Current:250A; (5)Operating JunctionTemperature Range:-40 to +150℃; (6)Storage Temperature Range:-40 to +150℃; (7)Mounting torque:0.5N.m.
Features
KCH30A10 features: (1)Similar to TO-247AC(TO-3P)Case ; (2)Dual Diodes – Cathode Common ; (3)Low Forward Voltage Drop ; (4)Low Power Loss,High Efficiency ; (5)High Surge Current Capability ; (6)Tj=150℃ operation.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 KCH30A10 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
KCH30A09 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KCH30A10 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KCH30A15 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
KCH30A20 |
Other |
|
Data Sheet |
Negotiable |
|
||||
