Product Summary
The KDE2406PTB1 is a DC brushless fan.
Parametrics
KDE2406PTB1 absolute maximum ratings: (1)Operating Temperature -10 ~ 70℃; (2)Weight 0.132 lb (59.87g); (3)Current Rating 0.110A; (4)Voltage Range 20.4 ~ 27.6VDC; (5)Voltage - Rated 24VDC; (6)Power (Watts) 2.60W.
Features

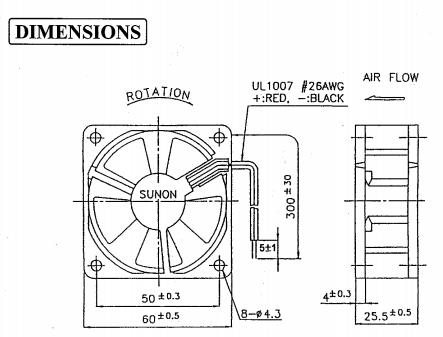

KDE2406PTB1 features: (1)Fan Type Tubeaxial; (2)Size / Dimension Square - 60mm L × 60mm H × 25.5mm W; (3)Noise 34.3 dB(A); (4)Static Pressure 0.220 in H2O (54.8 Pa); (5)Air Flow 22.1 CFM (0.626m3/min); (6)Termination 2 Wire Leads; (7)Bearing Type Ball; (8)RPM 5100 RPM.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 KDE2406PTB1 |
|
FAN 24VDC 60X25.5MM 22.1CFM |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
KDE2406PHS2 |
|
FAN 24VDC 1.9W |
Data Sheet |
Negotiable |
|
||||
|
KDE2406PHS3 |
|
FAN 60X15 24VOLT DC 1.2 W |
Data Sheet |
Negotiable |
|
||||
|
KDE2406PTB1 |
|
FAN 24VDC 60X25.5MM 22.1CFM |
Data Sheet |
Negotiable |
|
||||
|
KDE2406PTS1 |
|
FAN 24VDC 60X25.5MM 2.6W |
Data Sheet |
Negotiable |
|
||||
|
KDE2406PTS2 |
|
FAN 24VDC 60X25MM 17.6CFM |
Data Sheet |
Negotiable |
|
||||
|
KDE2408PTB1-6A (318) |
|
FAN 24VDC 80X25.5MM 2.6W 42.5CFM |
Data Sheet |
Negotiable |
|
||||
