Product Summary

The M27C160-100F1 is a 16 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (onetime programmable). It is ideally suited for microprocessor systems requiring large data or programstorage and is organised as either 2 Mbit words of 8 bit or 1 Mbit words of 16 bit. The pin-out is com-patible with a 16 Mbit Mask ROM. The FDIP42W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pat-tern. A new pattern can then be written rapidly tothe device by following the programming proce-dure. For applications where the content is programmed only one time and erasure is not required, the M27C160-100F1 is offered in PDIP42, SDIP42, PLCC44and SO44 packages

Parametrics

M27C160-100F1 absolute maximum ratings: (1)Ambient Operating Temperature (3):–40 to 125℃; (2)Temperature Under Bias:–50 to 125℃; (3)Storage Temperature:–65 to 150℃; (4)Input or Output Voltage (except A9):–2 to 7V; (5)VCCSupply Voltage:–2 to 7V; (6)A9 Voltage:–2 to 13.5V; (7)Program Supply Voltage:–2 to 14V.

Features

M27C160-100F1 features: (1)access time; (2)byte-wide or word-wide configurable; (3)16M bit mask rom replacement; (4)low power consumption; (5)electronic signature.

Diagrams

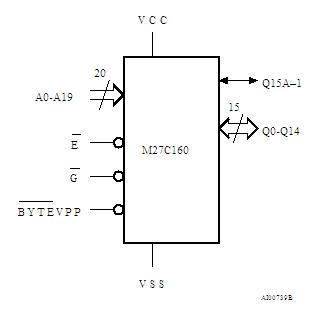

M27C160-100F1 Logic Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M27C160-100F1
M27C160-100F1

STMicroelectronics

EPROM 2Mx8 or 1Mx16 100ns

Data Sheet

Negotiable
