Product Summary

The M5480B7 is a monolithic MOS integrated circuit produced with a N-channel silicon gate technology. The M5480B7 utilizes the M5451 die packaged in a 28-pin plas-tic package making it ideal for a 3 1/2 digit dispaly. A single pin controls the LED dispaly brightness by setting a reference current through a variable resistor connected either to VDD or to a separate supply of 13.2V maximum. The applications of the M5480B7 are microprocessor displays, industrial control indication, relay driver, instrumentation readouts.

Parametrics

M5480B7 absolute maximum ratings: (1)Supply Voltage:-0.3 to 15 V; (2)Input Voltage:-0.3 to 15 V; (3)Off State Output Voltage:15 V; (4)Output Sink Current:40 mA; (5)Total Package Power Dissipation:940mW or 490mW; (6)Junction Temperature:150℃; (7)Operating Temperature Range:-25 to + 85℃; (8)Storage Temperature Range:-65 to + 150℃.

Features

M5480B7 features: (1)3 1/2 DIGIT LED DRIVER (23 segments); (2)current generator outputs (no resistors required); (3)continuous brightness control; (4)serial data input; (5)no load signal required; (6)wide supply voltage operation; (7)TTL compatibility.

Diagrams

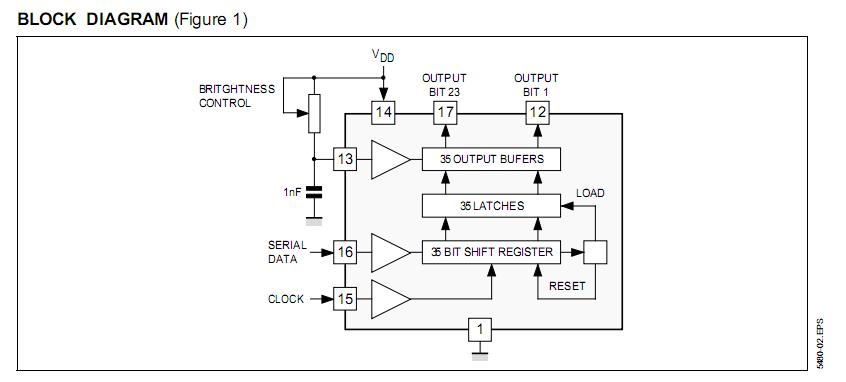

M5480B7 block diagram
