Product Summary

The MC33035P is a high performance second generation monolithic brushless DC motor controller containing all of the active functions required to implement a full featured open loop, three or four phasemotor control system. The MC33035P consists of a rotor position decoderfor proper commutation sequencing, temperature compensated reference capable of supplying sensor power, frequency programmable sawtooth oscillator, three open collector top drivers,and three high current totem pole bottom drivers ideally suited for driving power MOSFETs. Also included are protective features consisting of undervoltage lockout, cycle-by-cycle current limiting with a selectable time delayed latched shutdown mode, internal thermal shutdown, and aunique fault output that can be interfaced into microprocessor controlled systems.

Parametrics

MC33035P absolute maximum ratings: (1)Power Supply Voltage: 40v; (2)Oscillator Input Current (Source or Sink): 30mA; (3)Error Amp Output Current: 10mA; (4)Current Sense Input Voltage Range: -0.3 to 5.0V; (5)Top Drive Volatge: 40V; (6)Top Drive Sink Current: 50mA; (7)Bottom Drive Supply Voltage: 30V; (8)Bottom Drive Output Current: 100mA.

Features

MC33035P features: (1)10 to 30 V Operation; (2)Undervoltage Lockout; (3)6.25 V Reference Capable of Supplying Sensor Power; (4)Fully Accessible Error Amplifier for Closed Loop Servo Applications; (5)High Current Drivers Can Control External 3-Phase MOSFET Bridge; (6)Cycle-By-Cycle Current Limiting; (7)Pinned-Out Current Sense Reference; (8)Internal Thermal Shutdown; (9)Pb-Free Packages are Available.

Diagrams

MC33035P Representative Schematic Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

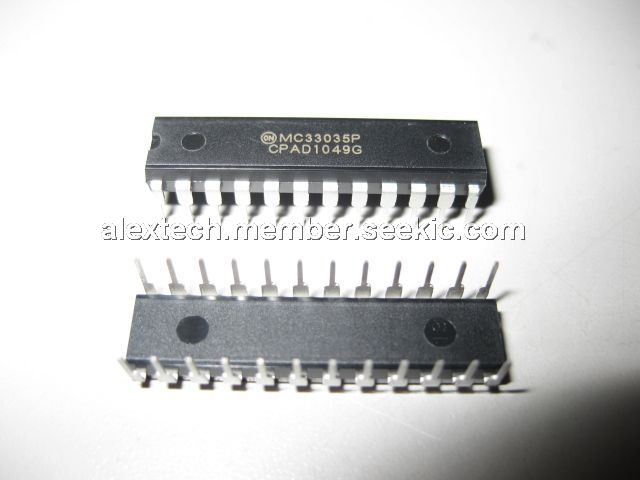

MC33035P
MC33035P

ON Semiconductor

Motor / Motion / Ignition Controllers & Drivers DC Brushless Motor

Data Sheet

Negotiable
MC33035PG
MC33035PG

ON Semiconductor

Motor / Motion / Ignition Controllers & Drivers DC Brushless Motor Controller

Data Sheet

Negotiable
