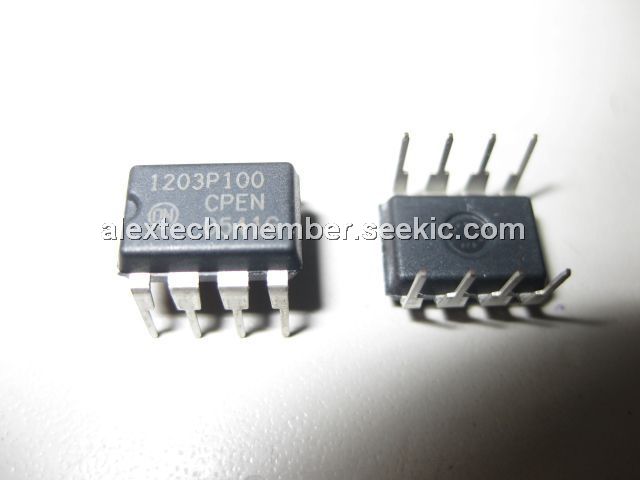

NCP1203P100G

PWM Current-Mode Controller, DIP8, 16 V, 5.0 mA, NCP1203P100G, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.40

PartNumber:: NCP1203P100G

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-15

From Other Seller

Part Number:NCP1203P100G
US $0.30 - 0.40
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

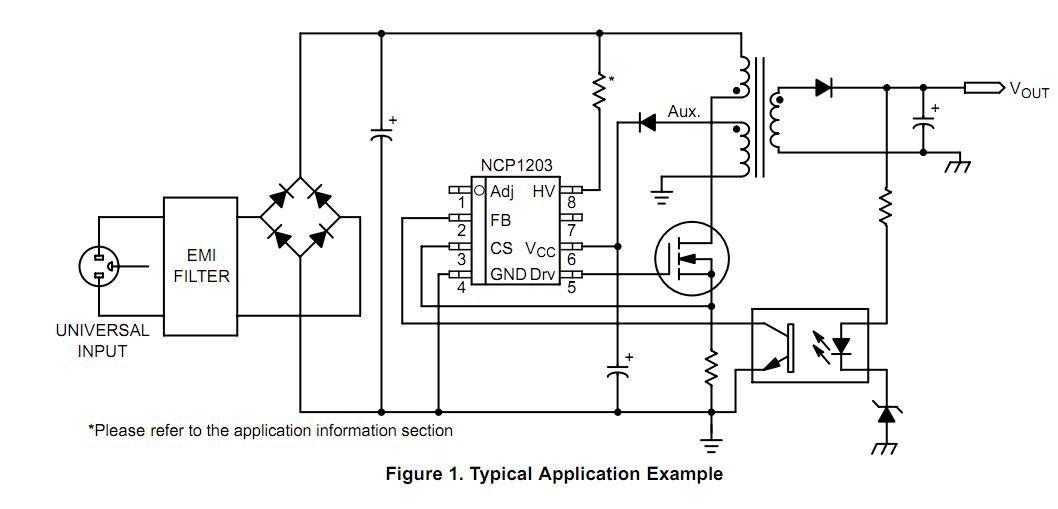

The NCP1203P100G is a PWM Current-Mode Controller for Universal Off-Line Supplies Featuring Standby and Short Circuit Protection. Housed in SOIC-8 or PDIP-8 package, the NCP1203P100G represents a major leap toward ultra-compact Switchmode Power Supplies and represents an excellent candidate to replace the UC384X devices. Due to its proprietary SMARTMOS Very High Voltage Technology, the circuit allows the implementation of complete off-line. The applications of the NCP1203P100G include AC-DC Adapters for Notebooks, etc, Offline Battery Chargers and Auxiliary Power Supplies (USB, Appliances, TVs, etc.).

Parametrics

NCP1203P100G absolute maximum ratings: (1)Power Supply Voltage VCC, Drv: 16 V; (2)Power Supply Voltage on all other pins except Pin 5 (Drv), Pin 6 (VCC) and Pin 8 (HV): -0.3 to 10 V; (3)Maximum Current into all pins except Pin 6 (VCC) and Pin 8 (HV) when 10 V ESD diodes are activated: 5.0 mA; (4)Maximum Junction Temperature TJMAX: 150℃; (5)Temperature Shutdown: 170℃; (6)Hysteresis in Shutdown: 30℃; (7)Operating Temperature Range TJ: -40 to +125℃; (8)Storage Temperature Range Tstg: -60 to +150℃; (9)ESD Capability, HBM Model, All pins except Pin 6 (VCC) and Pin 8 (HV): 2.0 kV; (10)ESD Capability, Machine Model: 200 V; (11)Maximum Voltage on Pin 6 (VCC) and Pin 8 (HV) Decoupled to Ground with 10μF: 450 V.

Features

NCP1203P100G features: (1)High-Voltage Startup Current Source; (2)Auto-Recovery Internal Output Short-Circuit Protection; (3)Extremely Low No-Load Standby Power; (4)Current-Mode with Adjustable Skip-Cycle Capability; (5)Internal Leading Edge Blanking; (6)250 mA Peak Current Capability; (7)Internally Fixed Frequency at 40 kHz, 60 kHz and 100 kHz; (8)Direct Optocoupler Connection; (9)Undervoltage Lockout at 7.8 V Typical; (10)SPICE Models Available for TRANsient and AC Analysis; (11)Pin to Pin Compatible with NCP1200; (12)Pb-Free Packages are Available.
